產品名稱：
SAE法蘭 6000 PSI 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

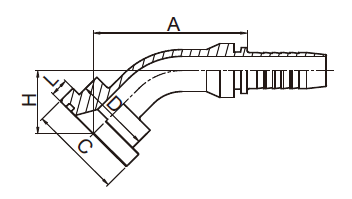

| 訂貨號 | 法蘭型號 | 膠 管 | 尺 寸 | |||||||||||
| 公稱內徑 | 標號 | A | C | D | H | L | ||||||||
| FHB-08-08 | 1/2" | 12 | 8 | 58.9 | 31.7 | 24 | 24 | 7.75 | ||||||
| FHB-08-12 | 1/2" | 20 | 12 | 77 | 31.7 | 24 | 29.6 | 7.75 | ||||||
| FHB-12-10 | 3/4" | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 | ||||||
| FHB-12-12 | 3/4" | 20 | 12 | 79.2 | 41.3 | 32 | 31.8 | 8.76 | ||||||
| FHB-16-16 | 1" | 25 | 16 | 88.9 | 47.6 | 38 | 34.7 | 9.53 | ||||||
| FHB-20-20 | 1.1/4" | 32 | 20 | 102.3 | 54 | 44 | 41.5 | 10.29 | ||||||
| FHB-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 | ||||||
| FHB-24-24 | 1.1/2" | 40 | 24 | 119.8 | 63.5 | 51 | 49 | 12.57 | ||||||
| FHB-32-24 | 2" | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 | ||||||
| FHB-32-32 | 2" | 50 | 32 | 144.8 | 79.4 | 67 | 61.9 | 12.57 | ||||||
