產品名稱：
英制鉸接接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

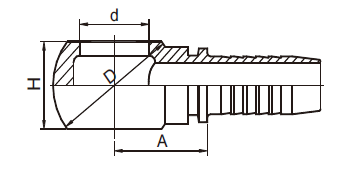

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | |||||||
| 公稱內徑 | 標號 | A | d | D | H | |||||
| BBA-04-04 | G1/4"X19 | 6 | 4 | 19.5 | 13.3 | 24 | 15 | |||
| BBA-04-05 | G1/4"X19 | 8 | 5 | 19.5 | 13.3 | 24 | 15 | |||
| BBA-06-05 | G3/8"X19 | 8 | 5 | 22 | 16.7 | 29 | 20 | |||
| BBA-06-06 | G3/8"X19 | 10 | 6 | 22 | 16.7 | 29 | 20 | |||
| BBA-08-08 | G1/2"X14 | 12 | 8 | 28 | 21 | 38 | 25 | |||
| BBA-10-10 | G5/8"X14 | 16 | 10 | 28 | 23 | 40 | 27 | |||
| BBA-12-12 | G3/4"X14 | 20 | 12 | 32 | 26.5 | 48 | 31 | |||
| BBA-16-16 | G1"X11 | 25 | 16 | 41 | 33.3 | 60 | 42 | |||
